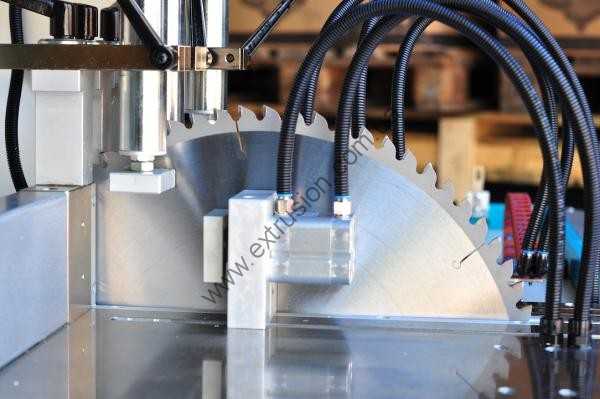

Aluminum profile cutting
One of the important factors in the production of aluminum profiles is the performance of high-quality cutting necessary for further use of the product. Profile cutting is a responsible process and involves the use of professional equipment. That's why Global Extrusion offers professional cutting of aluminum profiles, which will allow you to save time and also create additional convenience during transportation and storage.
Download product catalog
PRODUCTS
SERVICES
- maximum cutting length without interception 3500mm;
- minimum cutting length at 90g: 240mm;
- Standard side roller table – 1.8m;
- working pressure of compressed air 6-7bar;
- electric motor 2.5 kW, 2800 rpm;
- automatic setting of the cutting disc outwards and inwards up to 22.5, including intermediate angles by means of a servomotor;
- two cutting discs 550;
- two pneumatic clamps for each head (vertical + horizontal);
- possibility of cutting 2 profiles simultaneously;
- the ability to carry out cyclic cuts for slicing crackers;
- 2 pneumatic stops to support the profile;
- pneumatic coolant supply system
- dimensions: 5360x1440x2280mm, 2300kg
